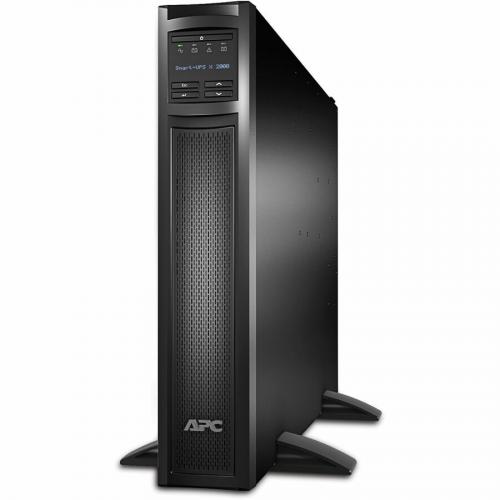

APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, SmartSlot, Extended runtime
In Stock Free Ground Shipping
1,955
Overview
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. Tech Specs
- Manufacturer
- Schneider Electric SA
- Manufacturer Part Number
- SMX2000RMLV2U
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- X
- Product Model
- SMX2000RMLV2U
- Product Name
- Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS
- Product Type
- Line-interactive UPS
- Plug/Connector Type
- NEMA 5-20P
- Receptacle Type
- NEMA 5-20P
- Receptacle Detail
- 1 x NEMA L5-20R
3 x NEMA 5-15R
3 x NEMA 5-20R - Number of Battery & Surge Outlets
- 7
- Emergency Power OFF
- Yes
- Cord Length
- 8 ft
- Transfer Time
- 4 ms
- Load Capacity (VA)
- 1920 VA
- Load Capacity (Watt)
- 1800 W
- Input Voltage
- 120 V
- Output Voltage
- 120 V AC
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 540 J
- Serial Port
- Yes
- USB
- Yes
- Total Number of Expansion Slots
- 1
- Battery Characteristics
- Maintenance-free, Sealed, Spill-proof
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 11 Minute
- Backup/Run Time (Half Load)
- 28 Minute
- Typical Battery Recharge Time
- 3 Hour
- Hot Swappable
- Yes
- Color Family
- Black
- Product Color
- Black
- Height
- 3.3"
- Width
- 17"
- Depth
- 26.3"
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 84.77 lb
- Package Contents
- Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting brackets
- Rack mounting hardware
- Rack mounting support rails
- Removable support feet
- Smart UPS signalling RS-232 cable
- USB cable
- Certifications & Standards
- BSMI|CSA|NOM|TÜV|VCCI Class A
- Software Included
- Powerchute Serial Edition
- Green Premium
- Yes
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2000RMLV2U_ROHS_DECLARATION&p_FileName=SMX2000RMLV2UKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035418&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035418&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
- California Proposition 65 Warning
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- REACH free of SVHC
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
- Directly Connected Equipment Guarantee
- $150000 Lifetime
