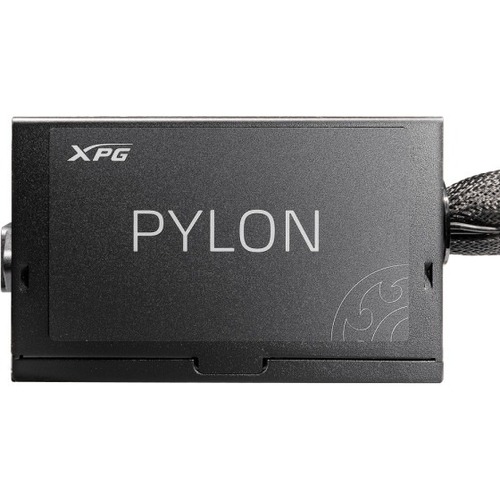

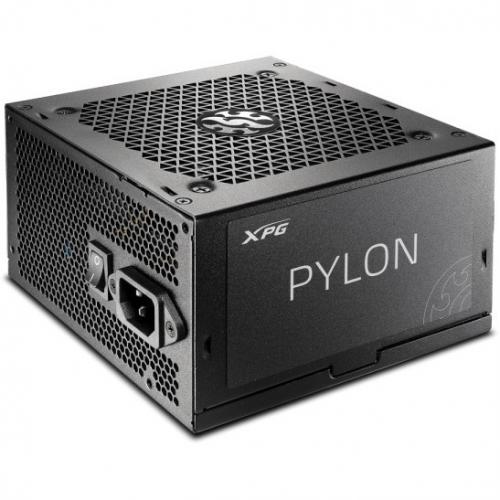

XPG PYLON 650W Power Suply

$93.69

In Stock
FREE GROUND SHIPPING *


XPG PYLON 650W Power Suply MFG: Adata
UPC: 842243020779

  • Internal
  • 120 V AC, 230 V AC Input
  • 650 W
  • 1 Fan(s)


* ground shipping normally takes 3-10 business days, depending on destination

Overview

XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.

DC-to-DC Circuit in BRONZE Grade

XPG PYLON complies with Intel ATX Power Supply Design Guide's sleep mode function, featuring DC-to-DC 100% +12V Full Power in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.

DC-to-DC Circuit minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to PC components' life expectancy.

80 Plus Bronze Certification

XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation.

120mm Fluid Dynamic Bearing (FDB) Fan

The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load.
The operating environment is kept quiet and efficient, and prolongs its life expectancy.

Main Japanese Capacitor at 105°C

High quality 105°C Main Japanese Capacity in XPG PYLON Bronze Series ensures great durability and offer highest stability and reliability.

XPG PYLON Series - 4 Wattage Options

4 wattage options - 450W, 550W, 650W, and 750W - XPG PYLON Series are available for different scenarios from home/office usage to gaming.

8 Industrial-Level Protections

XPG PYLON is designed for both efficiency and safety, and backed up by a 3-Year warranty. Fundamental protections such as OPP, UVP, OVP, SCP, OTP and OCP are all included, as well as NLO and SIP which are found in mid to high-end PSU, offering one of the highest standards of stability and security in this category.

Tech Specs

Manufacturer ADATA Technology Co., Ltd
Manufacturer Part Number PYLON650B-BKCUS
Manufacturer Website Address http://www.adata.com/us/
Brand Name XPG
Product Line PYLON
Product Name PYLON 650W Power Suply
Product Type Power Supply
Technical Information:
Specification ComplianceATX12V/EPS12V
Number of Fans1
Power Description:
Input Voltage120 V AC
230 V AC
Output Power650 W
Physical Characteristics:
Form FactorInternal
Height3.4"
Width5.5"
Depth5.9"
Miscellaneous:
Environmentally FriendlyYes
Environmental Certification80 Plus Bronze
Country of OriginTaiwan
Warranty:
Limited Warranty3 Year
