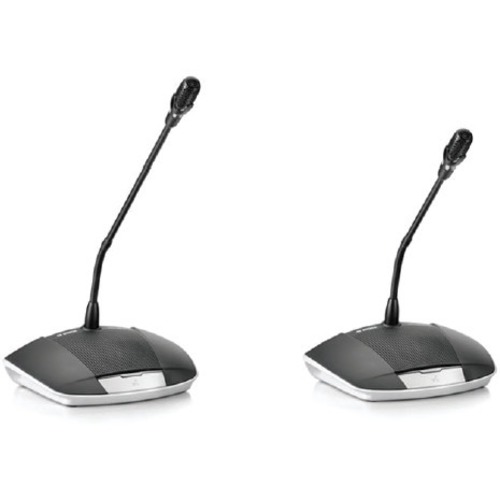

Bosch CCSD-DL Wired Microphone for Discussion System

Not Available



Bosch CCSD-DL Wired Microphone for Discussion System MFG: Bosch
UPC: 800549759267

* ground shipping normally takes 3-10 business days, depending on destination

Click here to view our Return Policy
Click here to view our full Terms of Sale


Overview

Discussion Devices are connected in a daisy-chain configuration to the Control Unit of a CCS 1000 Digital Discussion System. Their plug-and-play functionality allows them to be conveniently connected to and removed from the system as required. A power down or restart of the system is not necessary, which ensures for fast installation and reconfiguration times. Participants can take part in a discussion by speaking into the microphone and listening to proceedings through the built-in loudspeaker or (optional) headphones.

Tech Specs

Manufacturer The Bosch Group
Manufacturer Part Number CCSD-DL
Manufacturer Website Address http://www.bosch.com
Brand Name Bosch
Product Model CCSD-DL
Product Name CCSD-DL Discussion device with long microphone
Packaged Quantity 1
Product Type Microphone
Technical Information:
Connectivity TechnologyWired
Minimum Frequency Response200 Hz
Maximum Frequency Response12.50 kHz
Microphone:
Microphone TypeDesktop
Interfaces/Ports:
Host InterfaceProprietary
Physical Characteristics:
Product ColorBlack
Gray
Height2.5"
Width8"
Depth5.7"
Weight (Approximate)2.20 lb
Miscellaneous:
Application/UsageDiscussion System
Additional Information
  • Power consumption : 1.3 W
  • Frequency response : 30 Hz to 20 kHz (System electrical)
  • THD : <0.5 %
  • S/N : >93 dBA
  • Sampling rate : 44.1 kHz
  • Headphones load impedance : > 32 ohms < 1k ohm
  • Loudspeaker max. peak output power : 4 W
  • Loudspeaker nominal output : 72 dB SPL
  • Microphone polar pattern : Cardioid
  • Microphone nominal input : 85 dB SPL
  • Mounting : Tabletop (portable or fixed)
  • Material (top) : Plastic ABS+PC
  • Material (base) : Metal ZnAl4
  • Operating temperature : 0 ºC to +35 ºC (+32 ºF to +95 ºF)
  • Storage and transport temperature : -40 ºC to +70 ºC(-40 ºF to +158 ºF)
  • Relative humidity : 5% to 98% non-condensing
  • Air pressure : 600 to 1100 hPa
Environmentally FriendlyYes
Country of OriginChina
