Corsair TX-M Series TX550M

Not Available



Corsair TX-M Series TX550M MFG: Corsair
UPC: 843591091282

* ground shipping normally takes 3-10 business days, depending on destination

Click here to view our Return Policy
Click here to view our full Terms of Sale


Overview

Gold-certified efficiency and semi-modular cabling for low energy use and easy installation

TX Series semi-modular power supplies are ideal for basic desktop systems where low energy use, low noise, and simple installation are essential. All of the capacitors are 105°C rated, Japanese brand, to ensure solid power delivery and long term reliability. 80 PLUS Gold efficiency reduces operating cost and excess heat. Flat, sleeved black modular cables with clearly-marked connectors make installation fast and straightforward, with good-looking results.

80 PLUS Gold-certified Efficiency

The super-efficient operation of the TX Series semi-modular results in lower energy use and lower operating costs. Since it generates less heat, the fan doesn't need to work as hard, and you'll enjoy near silent operation.

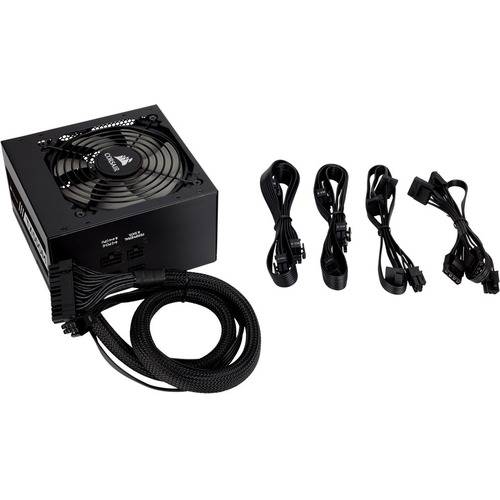

Modular cabling with clearly marked connectors

The flat, sleeved black cables are semi-modular, so you'll only use the cables you need and you'll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

Corsair Engineering and Quality Control

Every CORSAIR power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the TX-M Series semi-modular, because you need confidence and reliability regardless of your build budget.

Tech Specs

Manufacturer Corsair
Manufacturer Part Number CP-9020133-NA
Manufacturer Website Address http://www.corsair.com/us/
Brand Name Corsair
Product Series TX-M
Product Model TX550M
Product Name TX-M Series TX550M - 550 Watt 80 Plus Gold Certified PSU
Product Type Power Supply
Technical Information:
Specification ComplianceATX12V/EPS12V
Efficiency90%
Number of Fans1
ModularYes
Power Description:
Number of +12V Rails1
Input Voltage120 V AC
230 V AC
Output Voltage3.3 V DC @ 25 A
5 V DC @ 20 A
12 V DC @ 43 A
12 V DC @ 800 mA
5 V DC @ 3 A
Output Power550 W
Physical Characteristics:
Form FactorInternal
Height3.4"
Width5.5"
Depth5.9"
Weight (Approximate)3.75 lb
Miscellaneous:
Package Contents
  • TX-M Series TX550M - 550 Watt 80 Plus Gold Certified PSU
  • Power Cord
  • Modular Cables
  • 100mm Floppy Adapter
  • Mounting Screws
  • Cable Ties
  • Corsair Case Badge
  • User Manual
Certifications & Standards
  • TÜV
  • Environmentally FriendlyYes
    Country of OriginChina
    Warranty:
    Limited Warranty7 Year
