CyberPower PDU15M2F10R 100

Not Available



CyberPower PDU15M2F10R 100 MFG: CyberPower
UPC: 649532901050

* ground shipping normally takes 3-10 business days, depending on destination

Click here to view our Return Policy
Click here to view our full Terms of Sale


Overview

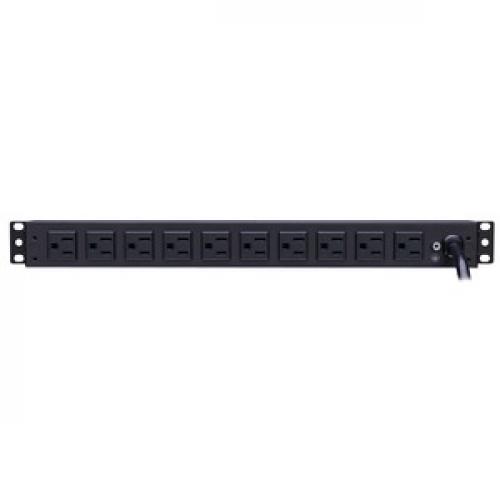

The CyberPower PDU15M2F10R, a 12-outlet (2 front, 10 rear), rackmount metered power distribution unit (PDU), provides 100 - 125 V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Designed for datacenters and other electrically demanding applications, the PDU15M2F10R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically. The PDU15M2F10R comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty overs defects in materials and workmanship in the product under normal use and conditions.

Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design
Safeguards against accidental power shutdown.

Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.

Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.

What's In The Box

PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card

Tech Specs

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number PDU15M2F10R
Manufacturer Website Address http://www.cyberpowersystems.com
Brand Name CyberPower
Product Series Metered PDU
Product Model PDU15M2F10R
Product Name PDU15M2F10R 12-Outlets PDU
Product Type PDU
Technical Information:
PDU TypeMetered
PhaseSingle Phase
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail12 x NEMA 5-15R
Protection TypeOverload Protection
Power Description:
Input Voltage120 V AC
Input Voltage Range100 V AC - 125 V AC
Output Voltage Range100 V AC - 125 V AC
Input Current15 A
Physical Characteristics:
Mounting OrientationVertical
Mount TypeRack-mountable
Rack Height1U
Height1.8"
Width17.5"
Depth2.3"
Weight (Approximate)4 lb
Miscellaneous:
Package Contents
  • PDU15M2F10R 12-Outlets PDU
  • Cord Retention Tray
  • User Manual
  • Screw Kit
  • Cord Clip Kit
  • Horizontal Mounting Brackets
  • Vertical Mounting Brackets
  • Product Registration Card
Energy StarNo
Environmentally FriendlyYes
Warranty:
Limited WarrantyLifetime
