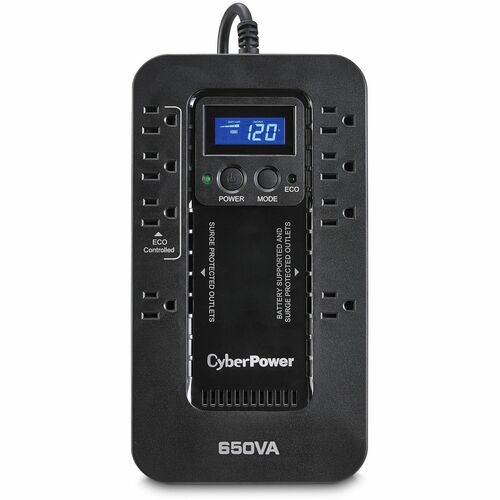

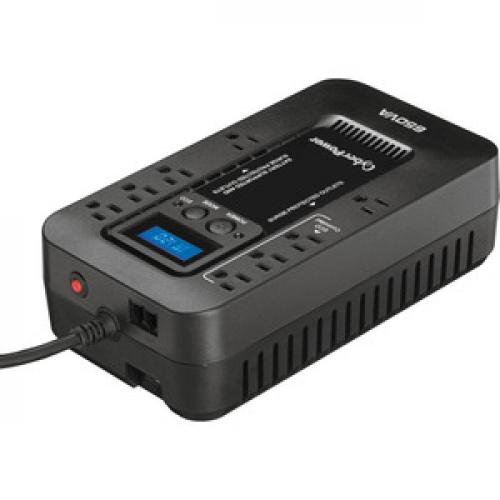

• CyberPower EC650LCD Ecologic 650VA/390-Watts Energy Efficient Desktop LCD UPS
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS 300/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Left/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Top/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Rear/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Life-Style/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Alternate-Image1/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Alternate-Image2/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Alternate-Image3/500
  • CyberPower EC650LCD Ecologic 650VA/390-Watts Energy Efficient Desktop LCD UPS
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS 300/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Left/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Top/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Rear/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Life-Style/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Alternate-Image1/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Alternate-Image2/500
  • CyberPower EC650LCD Ecologic 650VA/390 Watts Energy Efficient Desktop LCD UPS Alternate-Image3/500

Shipping Information

The shipping process is fully robotic and orders are normally pulled and shipped quickly in 7 different warehouses across the US and then dropped in sealed USPS, UPS and FedEx containers for pick-up on the next business day. High volume or backordered items may have additional shipping delays. Once pulled, orders cannot be stopped, however you can return orders for refund unopened if you have changed your mind. Tracking normally is sent / updated within 48 hours of pick-up. Delivery is normally 3-10 business days after leaving the warehouse, however carrier delays may occur. Shipping may take longer in rural areas, due to carrier delay, weather or acts of God. Weekends and Holidays do not count as business days and have no pickup, movement or delivery.

Covid 19 Update — We have seen slowdowns and backlogs in package pickup, sorting, scanning and delivery by UPS, Fedex and USPS caused by worker shortages and facilities disruption due to the Covid 19 Pandemic. Some UPS and USPS hubs are no longer scanning all packages, as a result some tracking will show nothing until delivery.

CyberPower EC650LCD Ecologic 650VA/390-Watts Energy Efficient Desktop LCD UPS

Not Available



CyberPower EC650LCD Ecologic 650VA/390-Watts Energy Efficient Desktop LCD UPS MFG: CyberPower
UPC: 649532607594

* ground shipping normally takes 3-10 business days, depending on destination

Click here to view our Return Policy
Click here to view our full Terms of Sale


Overview

A compact UPS with standby topology, the CyberPower Ecologic EC650LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC650LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC650LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.

Tech Specs

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number EC650LCD
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series Ecologic UPS
Product Model EC650LCD
Product Name EC650LCD ECOLOGIC UPS
Product Type Standby UPS
Technical Information:
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail8 x NEMA 5-15R
Number of Battery & Surge Outlets4
Number of Surge-only Outlets4
Overload ProtectionYes
Cord Length5 ft
Transfer Time4 ms
EMI/RFI Noise FilterYes
Energy SavingGreenPower UPS™ Bypass Technology
Power Description:
Load Capacity650 VA/390 W
Input Voltage120 V AC
Output Voltage120 V AC
Input Frequency63 Hz
Waveform TypeSimulated Sine Wave
Surge Energy Rating526 J
Management:
AlarmBattery Mode
Controls/Indicators:
Status IndicatorsPower On
Interfaces/Ports:
USBYes
USB (HID Compliant) PortYes
Battery Information:
Number of Batteries1
Battery CharacteristicsMaintenance-free, Sealed
Battery ChemistryLead Acid
Backup/Run Time (Full Load)2.80 Minute
Backup/Run Time (Half Load)8.40 Minute
Typical Battery Recharge Time8 Hour
Environmental Conditions:
Maximum Operating Temperature104°F (40°C)
Storage Temperature5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation10000 ft
Maximum Storage Elevation50000 ft
Storage Relative Humidity0% - 95%
Physical Characteristics:
Product ColorBlack
Height3.1"
Width10.6"
Depth5.9"
Form FactorCompact
Weight (Approximate)6.40 lb
Miscellaneous:
Package Contents
  • EC650LCD ECOLOGIC UPS
  • PowerPanel Personal Edition Software CD
  • USB Cable
  • User Manual
  • Registration Card
Additional Information
  • Field-serviceable Battery : Replaceable by qualified technician
  • Nominal Input Voltage : 120 VAC
  • Plug Style : Right Angle - 45° Offset
  • On Battery Frequency : 50/60 Hz ± 1% (auto-sensing)
  • On Battery Voltage : 120 VAC ± 5%
  • Outlets - Eco Controlled : 3
  • Outlets - Widely Spaced : 2
  • LCD : Multifunction LCD
  • Management Cable : USB Cable
  • Software (Free Download) : PowerPanel® Personal
  • Keyhole Mounting Slots : Yes
  • Operating Relative Humidity : 0 - 90 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
Certifications & Standards
  • UL1778
  • cUL CSA C22.2 No.107.3-05
  • FCC/DoC Class B
Software IncludedPowerPanel Personal Edition
Energy StarYes
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginChina
Warranty:
Limited Warranty3 Year
Directly Connected Equipment Guarantee$100000 - Lifetime
