CyberPower OL1000RTXL2UN Smart App Online UPS Systems

Not Available

CyberPower OL1000RTXL2UN Smart App Online UPS Systems MFG: CyberPower
UPC: 649532621910

1000VA/900W, 100
125 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

* ground shipping normally takes 3-10 business days, depending on destination

Click here to view our Return Policy
Click here to view our full Terms of Sale

Overview

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

Tech Specs

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	OL1000RTXL2UN
Manufacturer Website Address	http://www.cyberpowersystems.com
Brand Name	CyberPower
Product Series	Smart App Online UPS
Product Model	OL1000RTXL2UN
Product Name	Smart App Online OL1000RTXL2UN 1000VA Rack/Tower UPS
Product Type	Double Conversion Online UPS

Technical Information:
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R
Transfer Time	0 ns
Dataline Protection	RJ-11 RJ-45
Overload Protection	Yes
EMI/RFI Noise Filter	Yes
Energy Saving	ECO Mode Efficiency >94%
Application/Usage	Server Network Device Storage Device Network Closet PBX System VoIP Phone System Mission Critical Equipment

Power Description:
Load Capacity	1000 VA
Input Voltage	120 V AC
Input Voltage Range	100 V AC - 125 V AC
Output Voltage	125 V AC 100 V AC 110 V AC 115 V AC 120 V AC
Input Frequency	70 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	1780 J

Management:
Network Management	SNMP Manageable
Alarm	Battery Mode Low Battery Overload UPS Fault

Controls/Indicators:
Status Indicators	LED Indicators: Power On (White) Line Mode (Green) Battery Mode (Yellow) Bypass Mode (Yellow) Fault (Red) Replace Battery (Red)

Interfaces/Ports:
Serial Port	Yes
Network (RJ-45)	Yes
USB (HID Compliant) Port	Yes
EPO Port	Yes

Battery Information:
Number of Batteries	3
Battery Characteristics	Sealed
Battery Chemistry	Lead Acid
Battery Size	12V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	7.40 Minute
Backup/Run Time (Half Load)	20 Minute
Typical Battery Recharge Time	4 Hour
Replaceable Battery	Yes

Environmental Conditions:
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	55 dB(A)
Thermal Dissipation	80.30 W

Physical Characteristics:
Product Color	Black
Form Factor	Rack/Tower
Rack Height	2U

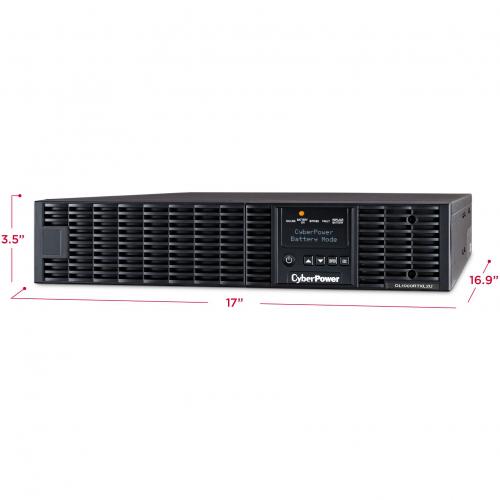

Height	3.5"
Width	17"
Depth	16.9"
Weight (Approximate)	39.60 lb

Miscellaneous:
Package Contents	Smart App Online OL1000RTXL2UN 1000VA Rack/Tower UPSUser Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line Usb Communication Cable Serial Interface Cable (RS-232) 8 x M5x7l Black Flat Head Screws 12 x M5x12l Black Pan Head Screws 6 x M5x6l Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads And A Software Download Card
Additional Information	Replacement Battery Cartridge Quantity: 1 Smart Battery Management (SBM) Mode: Yes Circuit Breaker: 15A Cold Start: Yes Input Power Factor: 0.99 Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load Crest Factor: 3:1 ECO Mode Voltage Regulation: ±10%, ±15% (Configurable) Harmonic Distortion: < 3% at Linear Load On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable) Output Power Factor: 0.9 Overload Protection: Line Mode: 105% ~ 125% Load - 1 min Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo) Dry Contacts: Yes Expansion Slot: Yes - RMCARD205 pre-installed LCD: Multifunction LCD Management Cable: USB Cable Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included) Rotatable LCD Control Panel Option: Yes Serial Port: 1 Serial Upgradeable firmware: Yes Material of Construction: Metal Mounting Hardware: Yes ECO Mode Thermal Dissipation: 108 BTU/hr Operating Relative Humidity: 0 - 90 % (non-condensing) Operating Temperature: 32 - 104 °F (0 - 40 °C)
Certifications & Standards	UL 1778
Software Included	PowerPanel® Business
Energy Star	Yes
Environmentally Friendly	Yes
Country of Origin	Taiwan

Warranty:
Limited Warranty	3 Year
Directly Connected Equipment Guarantee	$400000Lifetime


Files:
User-Manual
Manufacturer-Brochure
