CyberPower OR700LCDRM1U Smart App LCD UPS Systems

Not Available


CyberPower OR700LCDRM1U Smart App LCD UPS Systems MFG: CyberPower
UPC: 649532715046

* ground shipping normally takes 3-10 business days, depending on destination

Click here to view our Return Policy
Click here to view our full Terms of Sale


Overview

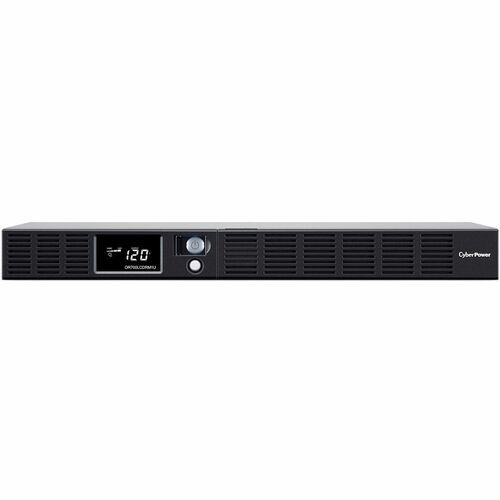

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR700LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR700LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR700LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Tech Specs

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OR700LCDRM1U
Manufacturer Website Address http://www.cyberpowersystems.com
Brand Name CyberPower
Product Series Smart App LCD UPS
Product Model OR700LCDRM1U
Product Name Smart App Intelligent LCD OR700LCDRM1U 700VA UPS
Product Type Line-interactive UPS
Technical Information:
AVRYes
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail6 x NEMA 5-15R
Number of Battery & Surge Outlets4
Number of Surge-only Outlets2
Transfer Time8 ms
Dataline ProtectionRJ-45
Overload ProtectionYes
EMI/RFI Noise FilterYes
Energy SavingGreenPower UPS™ Bypass Technology
Application/UsageServer
Workstation
Network Device
Telecommunication
Power Description:
Load Capacity700 VA
Input Voltage120 V AC
Input Voltage Range90 V AC - 140 V AC
Output Voltage120 V AC
Input Frequency63 Hz
Waveform TypeSimulated Sine Wave
Surge Energy Rating1150 J
Management:
AlarmBattery Mode
Controls/Indicators:
Status Indicators

On Unit:

  • Power On
  • Wiring Fault

LCD Panel:

  • Input Voltage
  • Output Voltage
  • Battery Capacity
  • Load Level
  • Runtime
  • On Battery
  • Overload
  • Silent Mode
Interfaces/Ports:
Serial PortYes
USB (HID Compliant) PortYes
Battery Information:
Number of Batteries2
Battery CharacteristicsMaintenance-free
Battery ChemistryLead Acid
Battery Size6V
Battery Capacity8000 mAh
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)11 Minute
Typical Battery Recharge Time8 Hour
Replaceable BatteryYes
Environmental Conditions:
Maximum Operating Temperature104°F (40°C)
Storage Temperature5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation10000 ft
Maximum Storage Elevation50000 ft
Storage Relative Humidity0% - 95%
Physical Characteristics:
Product ColorBlack
Form FactorRack-mountable
Rack Height1U
Height1.8"
Width17.1"
Depth9.3"
Weight (Approximate)18.50 lb
Miscellaneous:
Package Contents
  • Smart App Intelligent LCD OR700LCDRM1U 700VA UPS
  • Rack Ears (2)
  • User Manual
  • Power Management Software
  • Warranty Card
  • Serial Cable
  • Phone Cable
  • USB Cable
Additional Information
  • Replacement Battery Cartridge Quantity: 1
  • Adjustable Voltage Range: 88 - 144 VAC
  • Circuit Breaker: 15A
  • Plug Style: Straight
  • Automatic Voltage Regulation: Single Boost
  • On Battery Frequency: 60 Hz ± 1%
  • Output Power Factor: 0.6
  • Overload Protection: Internal Circuitry Limiting
  • Network Protection RJ45: 1-in / 1-Out (10/100/1000)
  • LCD: Multifunction LCD
  • Management Cable: USB Cable
  • SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205
  • Form Factor: Rackmount
  • Material of Construction: Metal
  • Operating Relative Humidity: 0 - 95 % (non-condensing)
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
Certifications & Standards
  • UL1778
  • cUL107.1
  • FCC Class B
Software IncludedPowerPanel® Business
Energy StarYes
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginChina
Warranty:
Limited Warranty3 Year
Additional Warranty Information

CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.

Directly Connected Equipment Guarantee$300000Lifetime
