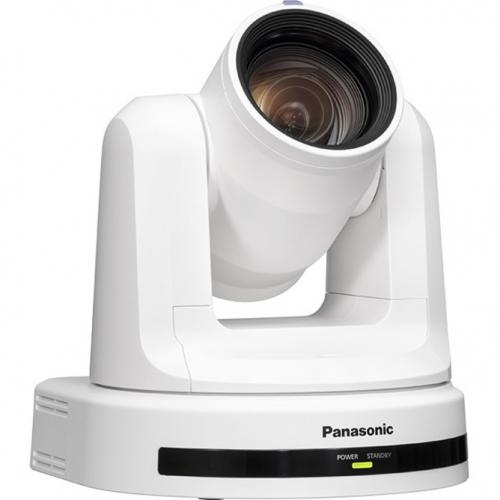

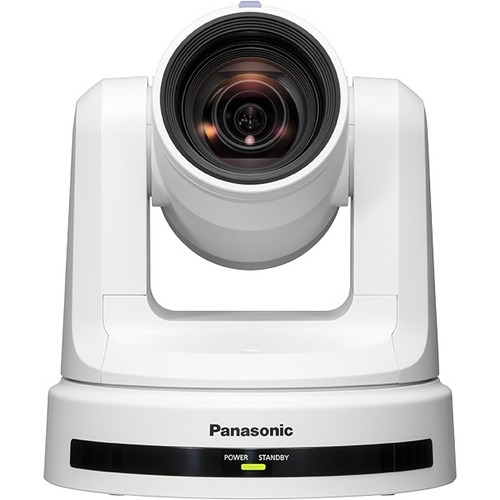

Panasonic AW-HE20 Full HD Network Camera

Not Available



Panasonic AW-HE20 Full HD Network Camera MFG: Panasonic
UPC: 885170399556

* ground shipping normally takes 3-10 business days, depending on destination

Click here to view our Return Policy
Click here to view our full Terms of Sale


Overview

PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes. The AW-HE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission. The AW-HE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-HE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.

Key features

  • High-Quality Video Streaming for More Comfortable Online Communication
  • Excellent System Flexiblility to Achieve Smart Wiring and Smooth Operation
  • Compact Size and Excellent Functionality that do not Disturb the existing Video Streaming Environment
  • New camera web interface with expanded control and dark mode

Tech Specs

Manufacturer Panasonic
Manufacturer Part Number AWHE20WP
Manufacturer Website Address http://www.panasonic.com
Brand Name Panasonic
Product Model AW-HE20
Product Name AW-HE20 Full HD Zoom Certified PTZ Camera
Product Type Network Camera
Technical Information:
Recording FormatsFull HD
HD RecordingYes
Display & Graphics:
Image Sensor TypeMOS
Color SupportedColor
Field of ViewHorizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele)
Video:
Video FormatsH.264
H.265
Motion JPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Analog Video Signal Format3G-SDI
Lens:
Lens TypeVarifocal
Minimum Focal Length3.90 mm
Maximum Focal Length46.80 mm
Lens IncludedYes
Minimum Aperturef/2.8
Maximum Aperturef/1.6
Optical Zoom12x
Network & Communication:
Connectivity TechnologyWired
Remote ManagementYes
Interfaces/Ports:
HDMIYes
Network (RJ-45)Yes
Power Description:
Input Voltage12 V DC
Power Source TypeDC
PoE
Physical Characteristics:
Mount TypeWall Mount
Product ColorWhite
Environmental Conditions:
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Operating Humidity90%
Miscellaneous:
FeaturesPTZ
Automatic White Balance

Files:
User-Manual
Manufacturer-Brochure
