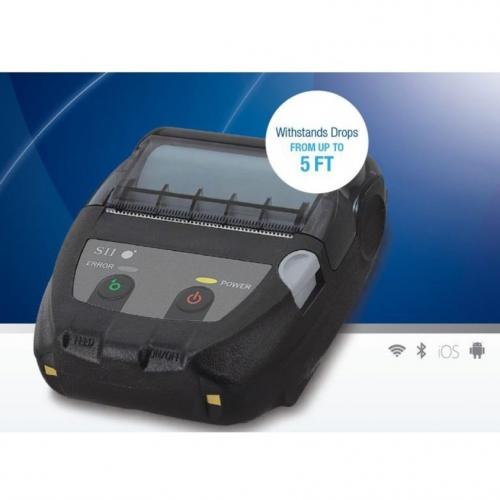

Seiko MP-B20 2" Mobile Printer

Seiko has once again stepped up to meet these trends with the design of an accompanying 2" mobile printer series known as the MP-B20. Similar to the MP-A40 flagship model, the printer offers its own unique set of features such as stability following 5-foot drops, a 2-inch paper width, and high-resolution receipts that print at more than 3 inches per second. Designed to be used in a variety of vertical markets, such as retail, hospitality, healthcare, and warehousing and logistics, one of the printer's main features is its compatibility with mobile payment and mobile POS applications-specifically "Pay at the Table," and direct receipt delivery.

Compact and Lightweight

With a 2-inch paper width, which far outshines any of its competing mobile receipt printers currently on the market, the MP-B20 Series printers weigh less than 1 pound with a battery pack. What's more, is that the printer's ability to withstand drops of up to 5 feet, is a perfect fit for a diverse mix of vertical markets; from hospitality and retail where space and convenience are of paramount importance, to other areas such as healthcare and warehousing/logistics, where ruggedness and environment play an important role.

Sleek and Stylish Design

The MP-B20 Series Printer features a contemporary yet functional design, while still offering the ability to print high-resolution receipts at more than 3 inches per second-one of the highest print speeds on the market. This is especially helpful in vertical markets where efficiency and speed are key and which require items such as barcoding, for instance in a medical and/or hospital setting. Other verticals can benefit from the printer's rapid speed, such as a line-busting scenario at a retail store, or a pay-at-the-table situation in a restaurant.

Technology Options

The MP-B20 Series Bluetooth Mobile Printers offer compatibility with the latest operating systems including Windows, 7, 8, 8.1, and 10. There is also SDK availability for Android and iOS print class libraries for added mobility. The printer also features a USB-style charger, as well as a compact and portable cradle for quick and easy charging options.

Key Vertical Markets:

Retail Mobile Printer

Hospitality Mobile Printer

Healthcare Mobile Printer

Field Service Mobile Printer

Key Applications:

Line Busting Mobile Printer

Receipt Mobile Printer

Field Service Mobile Printers

Product Information

Manufacturer

Seiko Instruments USA, Inc

Manufacturer Part Number

MP-B20-B02JK1-74

Manufacturer Website Address

http://www.siiprinters.com

Brand Name

Seiko

Product Model

MP-B20

Product Name

MP-B20 Compact Mobile Printer

Product Type

Thermal Transfer Printer

Technical Information

Recommended Use

Label/Receipt Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

3.15 in/s

Maximum Print Resolution (dpi)

203

Maximum Print Width

1.89"

Barcode Symbology Supported

UPC-A/E
EAN/JAN-8
EAN/JAN-13
ITF
Code 39
Codabar
Code 93
Code 128
PDF417
QR Code
Maxi Code
Data Matrix
GS1 DataBar

Application/Usage

Mobile
Retail
Healthcare
Warehouse
Logistic

Features

Compact
Lightweight
Rugged

Interfaces/Ports

USB

Yes

Network & Communication

Bluetooth

Yes

Cutter

Cutter

Yes

Cutter Type

Tear Bar

Media Types & Handling

Media Type

Label
Roll Paper
Receipt
Ticket

Maximum Roll Diameter

1.57"

Maximum Label Width

2.28"

Fonts & Emulation

Language Emulation

ESC/POS

Power Description

Power Source

Battery

Battery Information

Battery Included

Yes

Environmental Conditions

Operating Temperature

14°F (-10°C) - 122°F (50°C)

Physical Characteristics

Product Color

Black

Height

1.7"

Width

3.1"

Depth

4.3"

Weight (Approximate)

6.35 oz

Miscellaneous

Package Contents

• MP-B20 Compact Mobile Printer
• Charging Cradle
• USB Cable
• Belt Clip
• Extended Warranties

Cables Included

USB

Platform Supported

PC
Android
iOS

Warranty

Limited Warranty

1 Year
